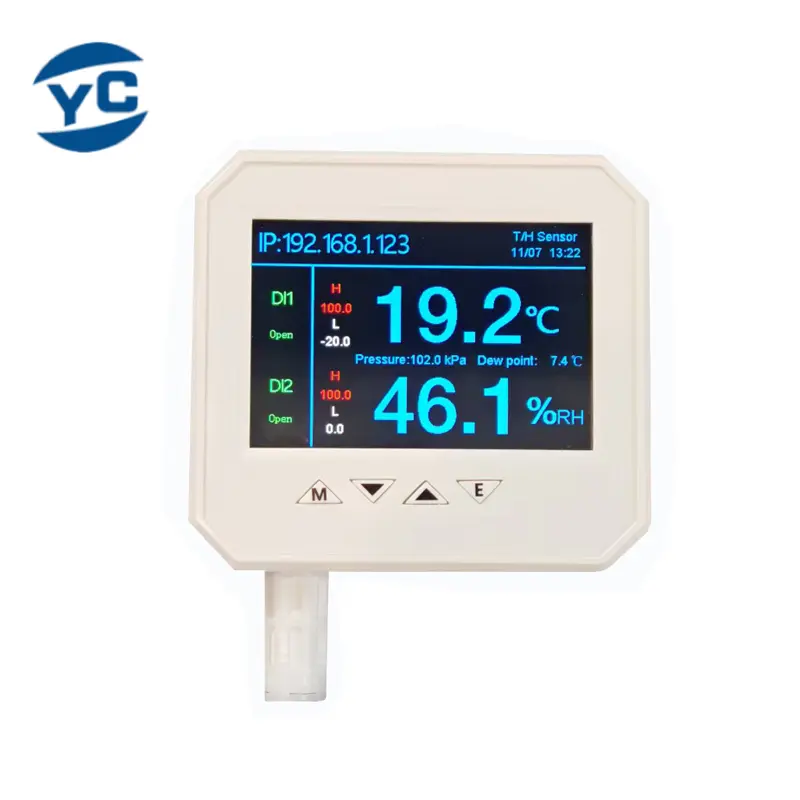

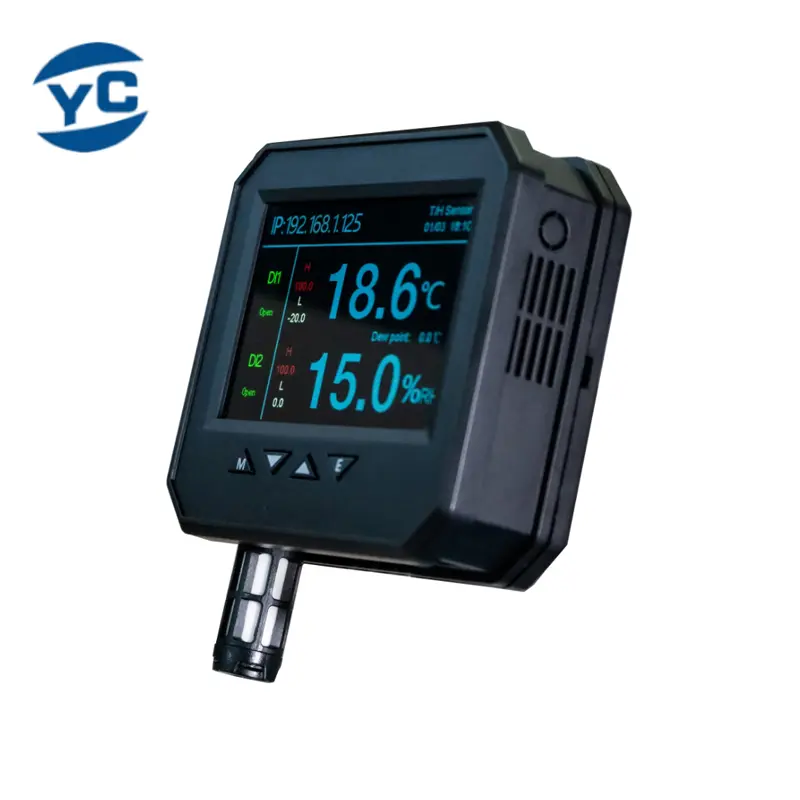

YCLH Sensor
1 / 4
Air Pressure+ temperature + humidity: Primarily used in environments with high cleanliness requirements, such as operating rooms, clean workshops, cleanrooms, and laboratories.
2-channel digital input (DI): Accepts dry contact signals for monitoring the status of devices such as door magnets, water leak sensors.
1-channel RS485 to Ethernet: Acts as a protocol conversion gateway, using devices such as Modbus RTUs (e.g., electricity meters, water meters, traditional sensors) to Ethernet for system integration.
1-channel relay output (DO): Functions normally open (NO) / normally closed (NC) contacts for programmable control of external devices. Automatically and intelligently activates/deactivates devices such as fans, alarms, or lights based on threshold violations.
Ethernet Communication: 10/100M auto-adaptive Ethernet interface, supporting multiple network protocols including MQTT, SNMP, Modbus TCP, and UDP, facilitating integration into existing LANs.
PoE Power (802.3af): Supports power supply via Ethernet cable, eliminating the need for separate power wiring. This greatly simplifies installation, especially in challenging locations such as ceilings or confined spaces. A standard DC power interface is reserved as a backup.
Local Data Logging: The device has built-in memory capable of storing 100,000 data records, enabling cyclical recording of historical data for easy tracing and analysis.
Multiple Alarm Mechanisms: Allows users to independently set high/low alarm thresholds for each monitored parameter. Supports various alarm methods, including local sound/light indicators, email notifications, or SNMP traps.
Wide Temperature and Voltage Range Design: Reliably operates over a wide temperature range of -20 °C to 65 °C and in complex industrial electromagnetic environments.
Rugged Housing: Constructed from a metal or high-strength flame-retardant plastic housing, providing superior shielding and durability.
| Measurement Content | Temperature, Humidity, Dew Point, Atmospheric Pressure |
| Measurement Range |
Temperature -25～80℃, Humidity 0～99.9%RH (Non-Condensing) 300～1100 hPa (equivalent to +9000m to -500m above sea level) |
| Operating Environment | Temperature -25～65℃, Humidity 0～99.9%RH (Non-Condensing) |
| Measurement Accuracy |
Temperature ±0.2℃ (at 25℃); Humidity ±2%RH (at 25℃) Atmospheric ±0.12 hPa (equal that ±1m, at 700～900hPa) |
| Power Supply | DC12～48V, POE power supply |
| Communication Protocol | Modbus TCP, UDP, SNMP (V1.V2), MQTT |
| Communication Interface | RJ45 |
| Equipment Interface |
2 channels DI input, 1 channel DO output, 1 channel RS485, 1 channel DC12V output |
| Alarm | Light, sound, email alarm |
| Screen Display | 3.5 inch TFT color screen |
| Data Storage | 100,000 records |
| Installation | Screw fixation, Magnetic |
| Dimensions | 100*172*34mm |
A1: It is primarily designed for high-cleanliness environments such as operating rooms, clean workshops, cleanrooms, and laboratories to monitor air pressure, temperature, and humidity.
A2: Yes, the device supports standard PoE (802.3af), allowing both power and network data to be transmitted over a single Ethernet cable. A backup standard DC power interface is also reserved.
A3: The built-in memory is capable of storing up to 100,000 data records locally, enabling cyclical historical data recording for easy tracing and analysis.
A4: It supports standard communication protocols including Modbus TCP, UDP, SNMP (V1/V2), and MQTT, allowing easy integration into existing local area networks (LAN) and IoT platforms.
A5: Yes, it features 2-channel digital inputs (DI) for door magnets or water leak sensors, a 1-channel RS485 port for integrating Modbus RTU devices, and a 1-channel relay output (DO) for automated control of external devices like fans or alarms.
A6: The device features high-precision sensors with a temperature accuracy of ±0.2℃, humidity accuracy of ±2%RH (at 25℃), and atmospheric pressure accuracy of ±0.12 hPa.
